How to Change Application's Font Settings?

Visual Paradigm uses the best possible font in its user interface. However, in case the default font setting appears to be too blur or illegible for users, the font setting in the application is allowed to be customized based on users' preference. In this tutorial, you can learn how to customize the application font in Visual Paradigm.

Compatible edition(s): Enterprise, Professional, Standard, Modeler

  • August 16, 2010
  • Views: 48,247
  • PDF

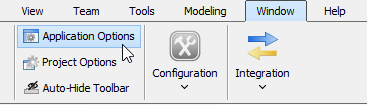

  1. After entering Visual Paradigm, select Window > Application Options from the application toolbar to open the Application Options window.
    Select Application Options

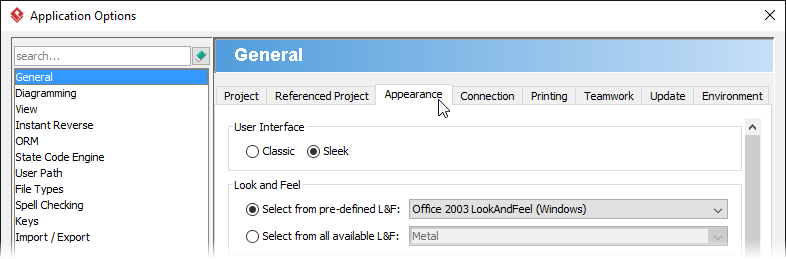

  2. In the Application Options window, select General page and open Appearance tab.
    The General tab of application options window

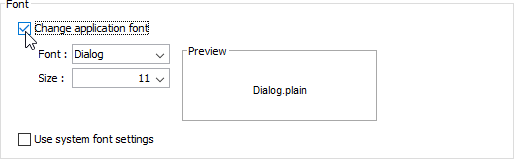

  3. Check Change application font.
    Change application font
  4. Now, you can change the font and its size. Select Arial Black from the drop-down menu of Font.
    Change the font
  5. Select 12 from the drop-down menu of Size.
    Change font size
  6. Click OK button in the Application Options window.
  7. In the pop-up Message dialog box, click OK button. It notifies you to restart the application.
  8. Restart the application.

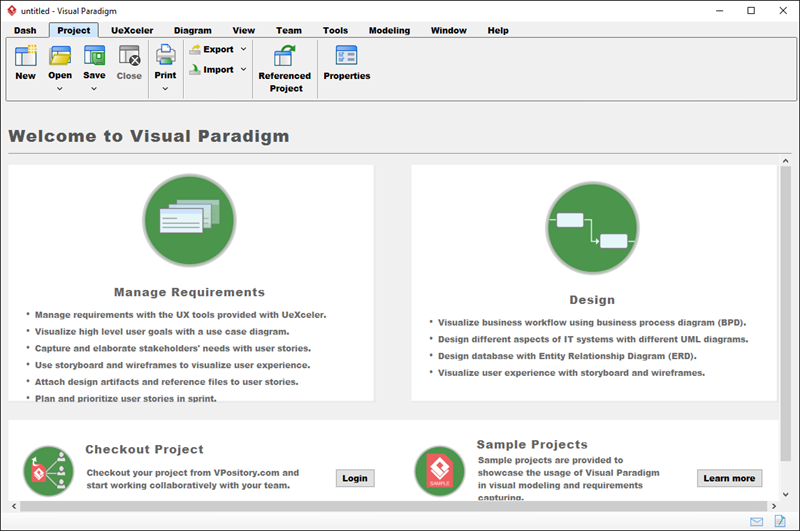

  9. As you can see in the application, the font style and size are changed as below:
    Font settings changed
