How to Hide-Away Toolbar Buttons in Visual Paradigm?

In Visual Paradigm, there are various functions in user interface available for users. However, not every button is useful to you. For this reason, we allow you to customize in order to display exactly the buttons you need. This can be done by hiding away buttons with corresponding functions that you do not use by XML. You can also share the setting with teammates, so that you can restrict their accesses to certain function. In the following tutorial, we will teach you how to remove UI widgets.

Compatible edition(s): Enterprise, Professional, Standard, Modeler

  • October 28, 2009
  • Views: 25,287
  • PDF

To customize Visual Paradigm:
  1. Select Help > Customize UI from to application toolbar.

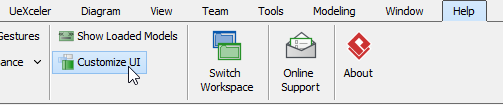

    Select Customize UI
    The Customize UI window will be shown.

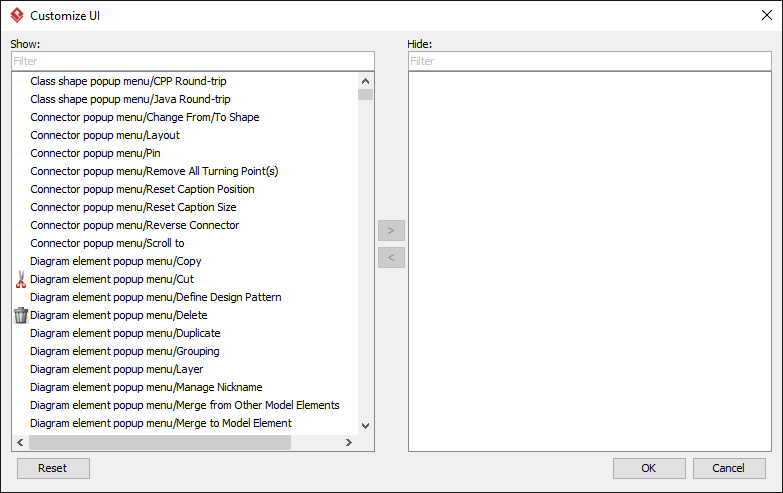

    Customize UI window
  2. The feature are grouped based on their nature and location. For example, features named as Toolbar/ORM/Reverse Database means this feature is under the ORM group in the Toolbar. While Toolbar means the toolbar show under Classic User Interface, Sleek Toolbar means the toolbar shows under Sleek UI. If you want to disable a feature completely, make sure all menus and toolbars are hidden. Now, select the feature that you want to hide away, and click the > button to move them to the Hide list.

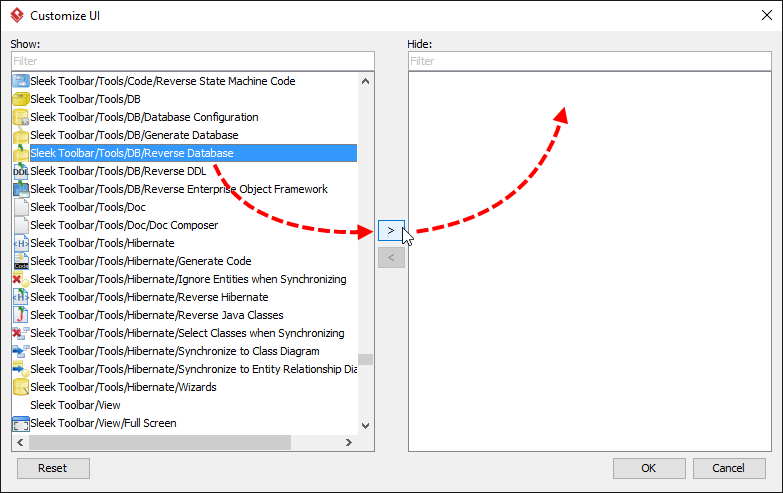

    Hide the feature: Reverse DB
  3. Once you finished selecting the features to hide, click OK to confirm. Restart Visual Paradigm for the change to take effect.
  4. An XML file vpuicustomization.xml that stores the customized settings can be found at the following places:
    Platform Location
    MS Windows %userprofile%\AppData\Roaming\VisualParadigm\vpuicustomization.xml
    Linux ~/.config/VisualParadigm/vpuicustomization.xml
    Mac ~/Library/Application Support/VisualParadigm/vpuicustomization.xml

    You can then share this file with your colleagues for them to apply the customization.
