How to Draw ONE Class Diagram for Java, C# and VB?

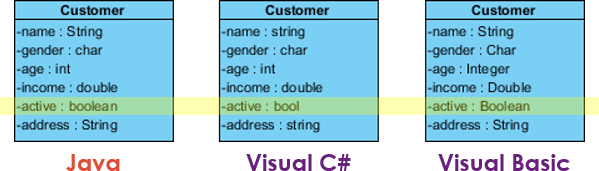

Unified Modeling Language (UML) is a generic modeling language that is independent of any particular programming language. Generally speaking, developers should be able to read and understand the diagrams without problem, regardless of the programming language he use. But to make things easier to understand, you can optionally present your UML class model in specific language. To be specific, data types to use an attributes and operations can be presented in language specific names like 'boolean' in Java and 'bool' in C#.

Compatible edition(s): Enterprise, Professional, Standard, Modeler

  • February 16, 2016
  • Views: 75,038
  • PDF

Class model in different languages

In this tutorial, we will show you how to present a class model in different programming languages.

Creating a project in specific language

In this section, we will show you how to create a new project in specific programming language. By doing so you can easily select the language-specific types in constructing a class model. Do not worry if you have not been doing this in your production projects. You can switch between languages any time you want. We will show you how to do this in the next section.
  1. Select Project > New from the application toolbar.
  2. In the New Project window, enter Tutorial as Name.

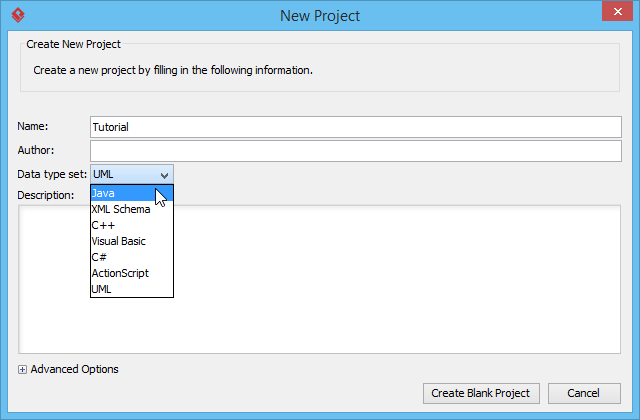

  3. By default, UML is selected to be the Data type set, meaning that you can use the primitive UML data types when constructing your model. Let's say we are going to draw a class diagram for a Java project. Select Java to be the Data type set.
    Select data type set
  4. Click Create Blank Project.

Creating a simple UML class diagram

In this section you will create a class diagram with one class, and several attributes in it. You will be creating the attributes with primitive Java data types.

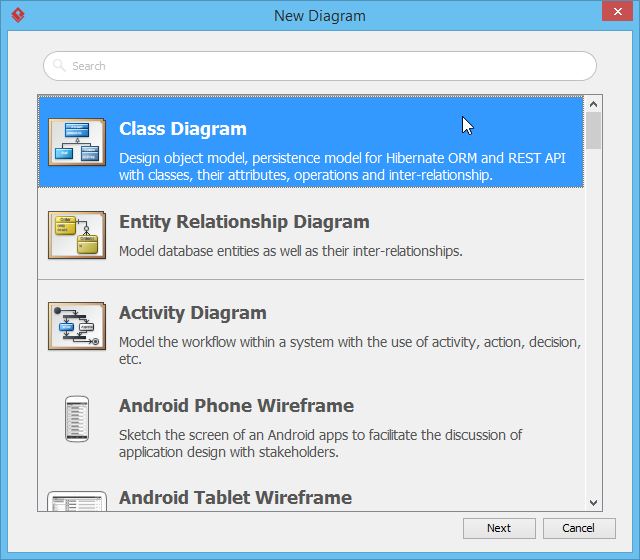

  1. Create a UML class diagram first. You can create a class diagram by selecting Diagram > New from the application toolbar. Select Class Diagram in the New Diagram window and then click Next. Click OK again to create the diagram.
    New class diagram
  2. Click a class User.
    User class created

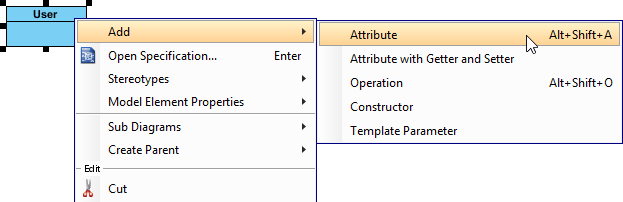

  3. Let's add an attribute name into the class. Right-click on the class and select Add > Attribute from the popup menu.
    New attribute in class
  4. name is a (Java) String attribute. You can type name : String to create such an attribute but let's try something different this time. Type name and then click on the diagram background to create a typeless attribute.
    Name attribute created
  5. Right-click on the attribute and select Open Specification... from the popup menu.

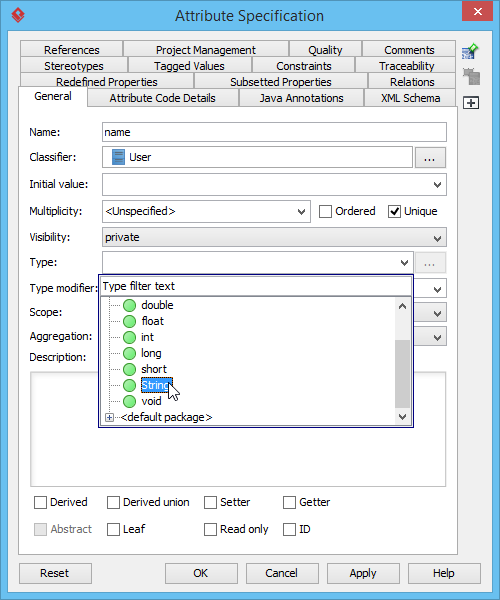

  6. Click on the drop down menu next to the Type field. You can see a list of primitive Java data types available for selection. Now, select String and click OK to confirm.
    Select string type
  7. Now, create two more attributes age : int and active : boolean. To save time, you can type the name and data type inline without going through the specification window.
    Attributes created

Presenting class model in another programming language

Now you have a class diagram with Java data types used as attribute types. Your Java developers are happy. Let's entertain the C# developers by presenting the data types in C#.
  1. Select Window > Configuration > Configure Programming Language from the application toolbar.

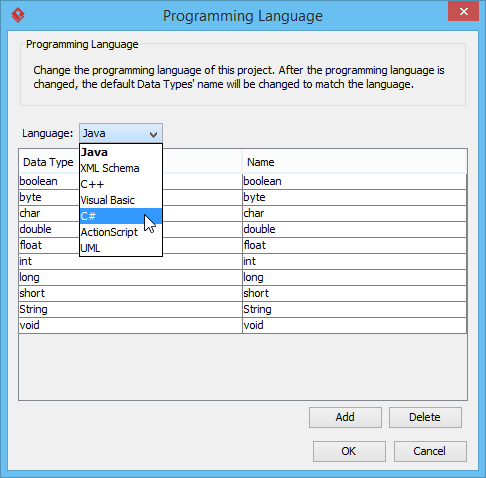

  2. The Programming Language window shows the currently selected language, its supported data types and their corresponding display names. We will describe in more detail in a minute. Now, change Language from Java to C#.
    Change Java to C#

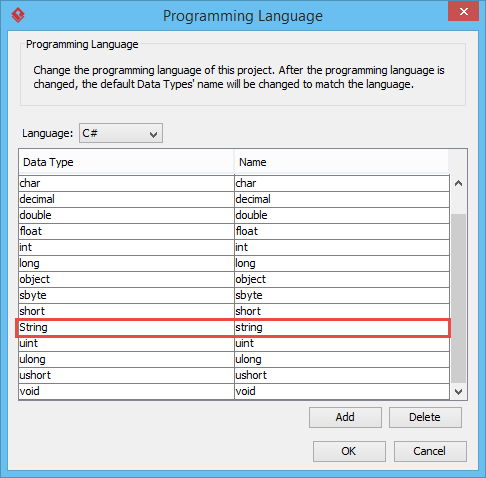

    The list of data types is updated, and is now longer than before. If you scroll you can see some C# types like uint and ulong, which are not available in Java. So how to read the two columns? Let's check the row for String type. The first and second columns are showing String and string respectively. This means that the original String type (available under Java) will be displayed as string by changing the language to C#.
    String type changed
  3. Click OK to confirm the change of programming language. You can now see the attributes name is now showing as a C# string, while active is now a C# bool instead of a Java boolean.
    C# data types used
