How to Bridge the Flows between Parent and Sub-Diagrams?

When modeling complex systems, we often use the sub-diagram to elaborate a particular elements in details. This helps to keep our design clean and context sensitive. However, in previous versions, sub-diagram didn't explain how the flows were associated between parent element and the child diagram. In Visual Paradigm, you can now display the in-flow and out-flow element in sub-diagram in certain situations, which helps you to identify the flows between diagrams.

Compatible edition(s): Enterprise, Professional, Standard, Modeler

  • January 13, 2015
  • Views: 26,134
  • PDF

In version 12.0, the element for the incoming and out-going flows are automatically pulled into sub-diagram when:

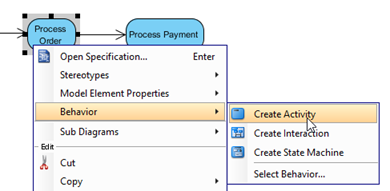

  1. Modeling the behavior of an action in UML Activity Diagram
    01 define behavior

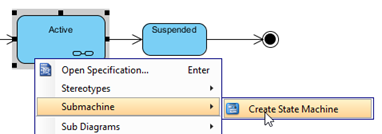

  2. Modeling the detail of a submachine state in State Diagram
    02 create submachine
  3. Modeling the detail of sub-process in Business Process Diagram
    process
  4. Decomposing the process in Data Flow Diagram
    04 decompose dfd process

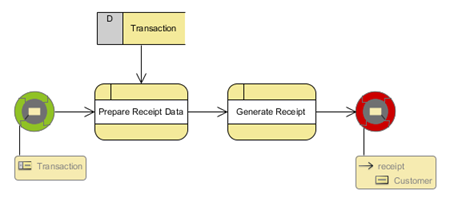

Once the sub-diagram is being created and the incoming and outgoing flow are pulled into the sub-diagram, you can then start modeling the sub-diagram from the incoming flow and end with the out-going flow.

05 model with in out flow

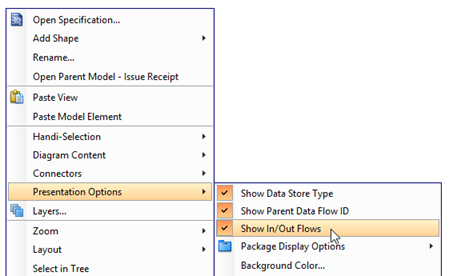

To turn on the in-flow and out-flow indicator, right-click on the blank area of the diagram and select Presentation Options > Show In/Out Flows.

06 turn on in flow flow

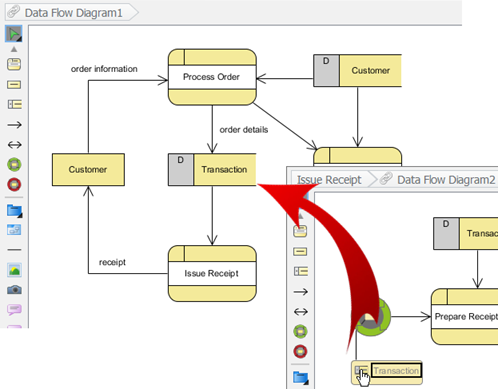

Once the In-flow and Out-flow indicator are shown, you can navigate to the parent diagram by double click on it.

diagram

What this Tutorial on YouTube
