How to Fill-in a UML State's Body?

You can define entry activity, exit activity and do activity (i.e. activity to perform) for each state in a state machine diagram. Furthermore, you can specify the pre and post condition, and the body for each of them. In this tutorial, you can learn how to specify these values, and how to show/hide them in the state body through updating the presentation options of state.

Compatible edition(s): Enterprise, Professional, Standard, Modeler

  • August 16, 2010
  • Views: 38,165
  • PDF

  1. Download Disc Player.vpp. You can also find this file at the bottom of this tutorial.
  2. Open the downloaded .vpp file in Visual Paradigm. To open a project, select Project > Open from the application toolbar.
  3. Take the following state machine diagram as an example:
    state machine diagram
  4. Next, enter values for Await Action state. Right-click on Await Action state and select Open Specification... from the pop-up menu.
    open spec

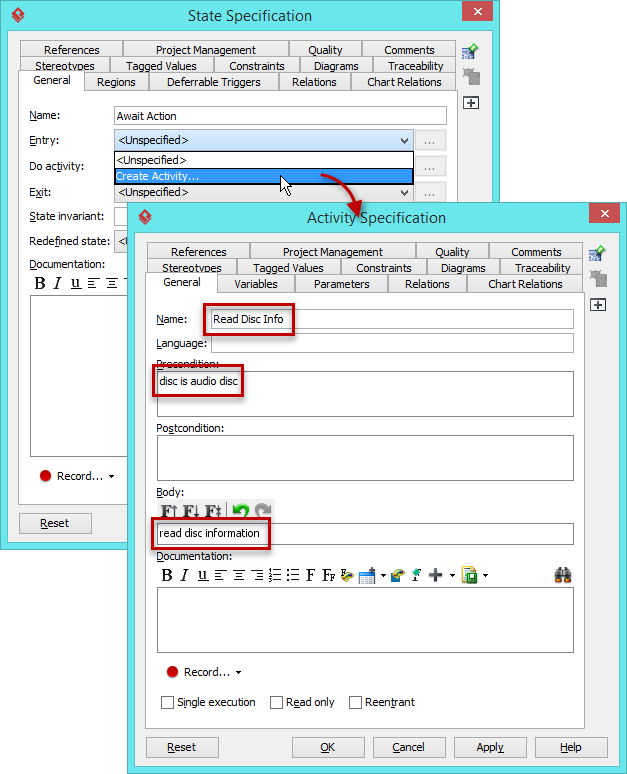

  5. In the State Specification window, you can enter entry activity, do activity and exit activity. Try to enter values for entry. Click on the drop down menu of Entry. In the Activity Specification, enter name as Read Disc Info, precondition as disc is auto disc and body as read disc information. Click OK button.
    edit entry
  6. Edit do activity and exit activity for Await Action state following the table as shown below:
      Name Body
    Do (activity) Show Disc Info Show disc information
    Exit (activity) Clear Disc Info Clear disc information
  7. Now, enter values for Play Disc state. Right-click on Play Disc state and select Open Specification... from the pop-up menu. Enter entry activity, do activity and exit activity following the table as shown below:
      Name Body
    Entry (activity) Show Track Info Show track information
    Do (activity) Play Track Output audio
    Exit (activity) Clear Track Info Clear track information

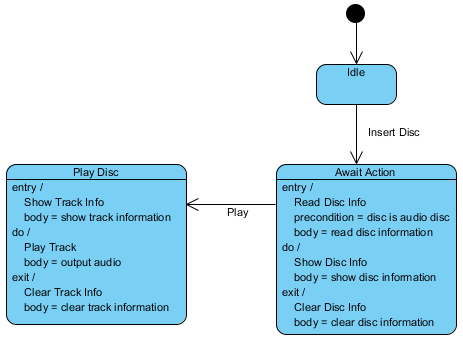

  8. The result of editing values for both states:
    editing result

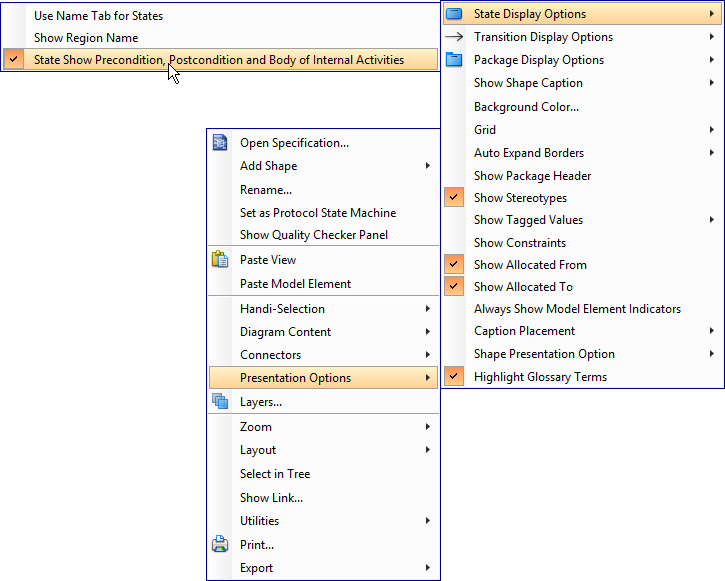

  9. If you want to hide the values in the state body. Right-click on the diagram's background and de-select Presentation Options > State Display Options > State Show Pre-condition, Postcondition and Body of Internal Activities from the pop-up menu.
    deselect show

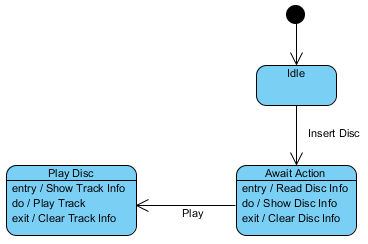

  10. The result of hidden value for all states:
    hidden result
