What is Package Diagram? How to Draw Package Diagram?

At the beginning of the project, you only have a limited number of diagrams and everything is simple and beautiful. However, when time flies, more and more diagrams have been created and they start to become unmanageable. As a result, your project becomes hard to navigate and diagrams become difficult to locate when you want to review or make changes.

Compatible edition(s): Enterprise, Professional, Standard, Modeler

  • July 29, 2014
  • Views: 260,198
  • PDF
  • Video

00 intro

How can we fix it up? We can make use of the Package Diagram to organize your diagrams into different packages. This helps you in categorizing your diagrams according to their natures, making them easier to be navigated and located. The Package Diagram also serves as a catalog for you to jump to the diagram that you want to look at. In this tutorial, we will show you how this can be done.

Create Packages for your diagrams

First, we need to have our packages ready. To create packages:

  1. To create a Package Diagram, select Diagram > New from the toolbar.
  2. In the New Diagram window, select Package Diagram and click Next.

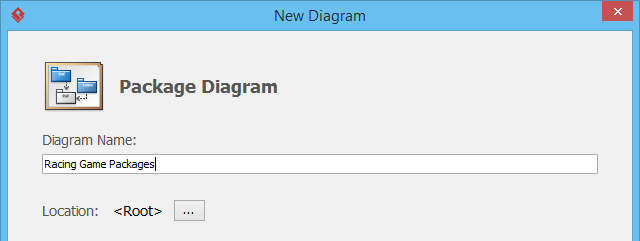

  3. Enter Racing Game Packages as diagram name and click OK to confirm.
    name package diagram
  4. Click the Package button in diagram tool bar, then click on the blank area of the diagram to create the package.
    create package
  5. Name the package as Race.
    rename package

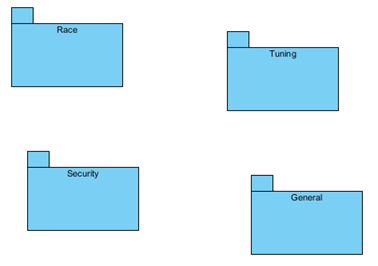

  6. Repeat the steps to create other packages, namely, Tuning, Security and General respectively.
    05 finish create package

Organize diagrams with Packages

Once the packages are ready, we can then start to organize our diagrams.

  1. Click on the Race package to bring up the sub-diagram resource icon.
    diagram resources

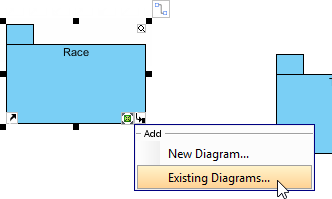

  2. Click on the resource icon, then select Existing Diagrams... from the popup menu.
    07 add existing diagram

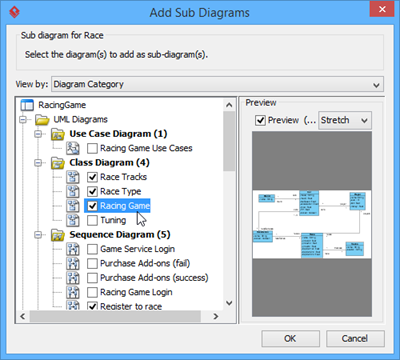

  3. Select the following diagrams in the Add Sub Diagrams dialog, then Press OK to commit.
    1. [Class Diagram] Race Tracks
    2. [Class Diagram] Race Type
    3. [Class Diagram] Racing Game
    4. [Sequence Diagram] Register to race
    5. [Communication Diagram] Register to race - Communications
    6. [State Machine Diagram] Race Series State
    7. [Activity Diagram] Register to race
    8. [Entity Relationship Diagram] Player Race
    9. [Entity Relationship Diagram] Race Series
    10. [Entity Relationship Diagram] Racing Game

    08 add diagram
  4. Repeat the steps for the following packages and diagrams
    Package Diagram
    Tuning [Class Diagram] Tuning
    [State Machine Diagram] Car State
    [Entity Relationship Diagram] Cars
    Security [Sequence Diagram] Game Service Login
    [Sequence Diagram] Purchase Add-ons (fail)
    [Sequence Diagram] Purchase Add-ons (success)
    [Sequence Diagram] Racing Game Login
    [Business Process Diagram] Purchase Add-ons
    General [Use Case Diagram] Racing Game Use Cases
    [Component Diagram] Game Components
    [Deployment Diagram] Game Deployment
    [Requirement Diagram] General Requirements
    [Matrix Diagram] Classes Matrix
    [Matrix Diagram] Entity Matrix
    [Matrix Diagram] Process Matrix
    [Analysis Diagram] Player Analysis Diagram

Define relationships between packages

Now, since our diagrams are being structured with packages, we can define the relationships among them. To create relationships between packages:

  1. Click on the Race package to show up its resource icon.

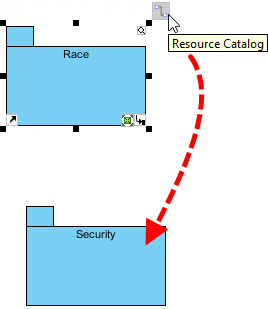

  2. Drag out the Resource Catalog button and drop it at the Security package.
    09 define relationship
  3. Select Dependency -> Package in Resource Catalog.
    09b select dependency in resource catalog

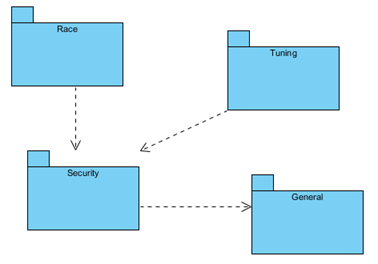

  4. Repeat the steps to create dependency from Tuning to Security and also from Security to General.
    10 relationship result

Navigate between packages and contained diagrams

The Package Diagram can act as a starting point for you to navigate within your project. To navigate from one diagram to another:

  1. Click on the package to bring up the resource icons, say the Race.

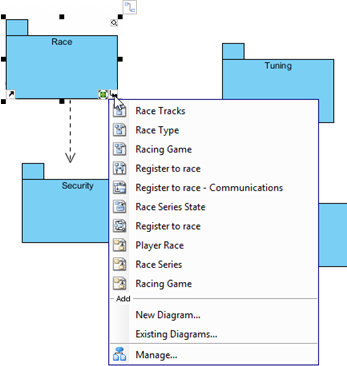

  2. Click on the sub-diagram resource icons. This will bring up a list of sub-diagrams under the Race package.
    diagram popup

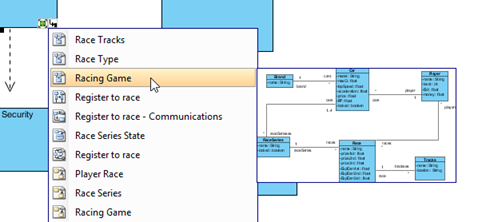

  3. Locate the diagram from the popup menu, say the Racing Game class diagram and then click on it.
    12 open subdiagram
  4. You are now being brought to the Racing Game class diagram.
  5. You can go back to the package by clicking the link at the top left corner of the diagram.
    go back to parent

Publish a project to HTML with Package Diagram as the navigation map

This kind of handy navigation is not limited to within the application. You can also have it inside the published HTML website. To publish your project into a HTML website:

  1. Save your project by selecting Project > Save from the toolbar.
  2. Select Tools > Doc > Publish Project... from the toolbar.

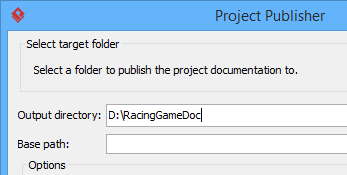

  3. Enter the output location for the publisher in the Output directory field.
    16 output path
  4. Press the Advanced Options... button to bring up the advanced settings.
    17 adv options

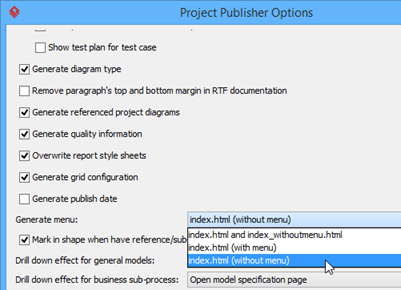

  5. Select index.html (without menu) in the Generate menu combo box.
    18 no menu

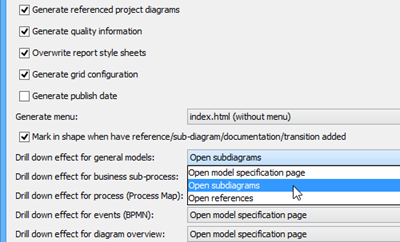

  6. Select Open subdiagrams in Drill down effect for general models.
    19 drill down

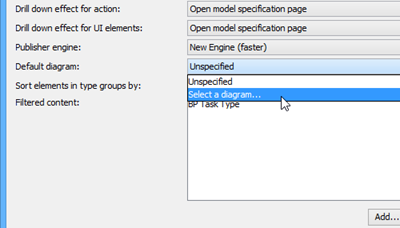

  7. Choose Select a diagram in the Default diagram combo box.
    20 select default

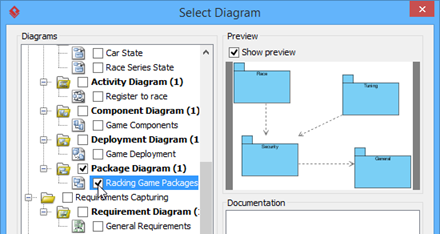

  8. Pick the Racing Game Packages and press OK.
    21 select default diagram

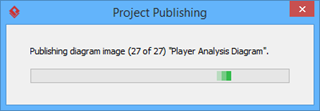

  9. Press OK to close the Advanced Options dialog and press OK again in the Project Publisher dialog to start publishing.
    22 publishing
  10. Press OK when publishing is completed. This will launch the browser and with the Racing Game Packages diagram showing.
    23 publish complete

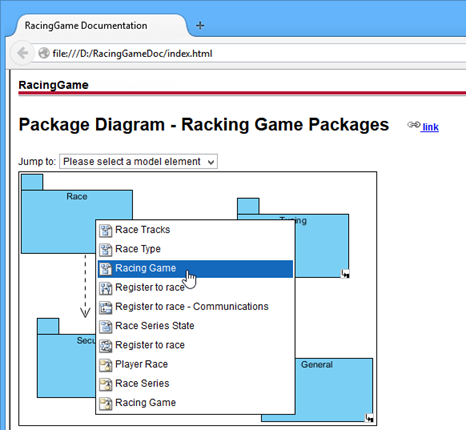

  11. You can click on the package to bring up the popup menu to jump to the sub-diagram, say the Racing Game class diagram.
    jump to sub diagram

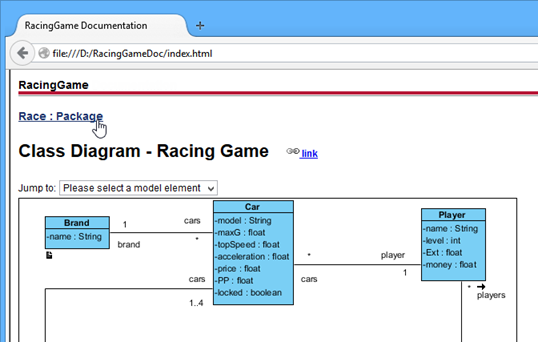

  12. And in the sub-diagram you can always go back to the parent package by clicking the link at the top of the page.
    jump to parent package

Download Sample Project

You can download the sample project to walk through this tutorial.

Watch this Tutorial on YouTube

Here is the video version of this tutorial.
