Oracle Database Reverse Engineering

This tutorial is aimed to show the steps of visualizing an Oracle database by forming an >ERD (entity relationship diagram) in Visual Paradigm. Visual Paradigm supports the reverse engineering of database tables, stored procedures and triggers. Users can reverse database from small to huge scale, by constructing multiple ERD base on different contexts.
This tutorial will walk through the reversal of database tables. Since the steps for reversing stored procedures and trigger are more or less the same, readers are expected to master all the required techniques in reverse engineering of Oracle database by going through this tutorial.
Topics
1. Open Database to Data Model dialog box
2. Configure JDBC connection
3. Select database schema to be reversed
4. Construct context-based ERDs with the reversed entities

Compatible edition(s): Enterprise, Professional, Standard

  • September 1, 2009
  • Views: 53,110
  • PDF
  1. To reverse database, select Tools > Database > Reverse Database... from the main menu.

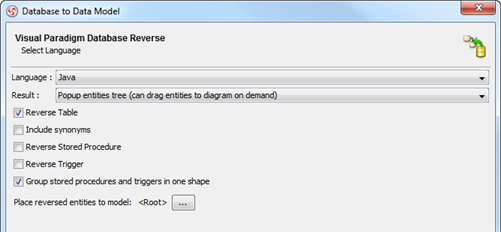

  2. The Database to Data Model dialog box appear. Un-check Reverse Stored Procedure and Reverse Trigger, since we only want to reverse tables this time. Click Next.
    Select reverse database table to model

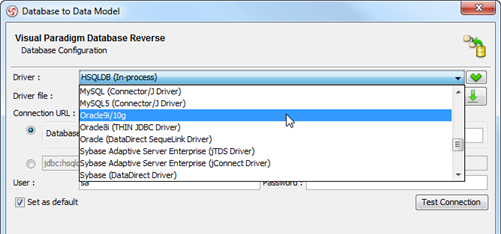

  3. Select Oracle 9i/10g as Driver.
    Select oracle database JDBC driver
  4. At the end of the Driver file field, click ... to specify the Oracle JDBC driver file.
  5. Select the Oracle JDBC driver file. Note that the JDBC driver file can be found at ${oracle_server_dir}\jdbc\lib, or downloaded from http://www.oracle.com/technology/software/tech/java/sqlj_jdbc/index.html.

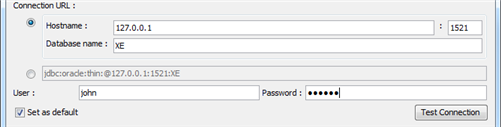

  6. Fill in the information of the database to reverse, and click Test Connection to verify the connection. Click Next.
    Test Oracle database JDBC connection
  7. Select specific schema(s) to be reversed by first selecting Selected Schema.
  8. Select schema John and click Next.

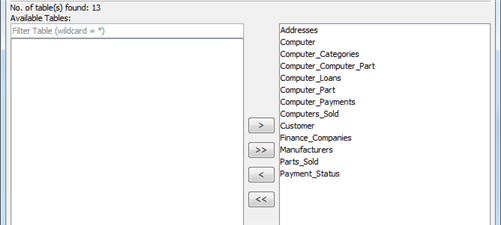

  9. The tables are listed. Click Check All to reverse all the tables of the schema.
    Select all database table to reverse
  10. Click Finish to start the reverse process.

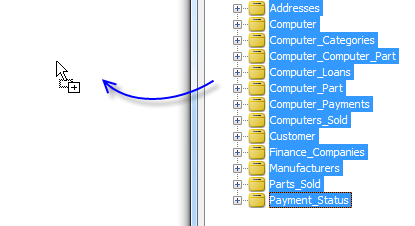

  11. A blank, new ERD is created in background, and the reversed entities are listed in the Reversed Entities dialog box. Select all the entities, and drag them to the ERD.
    Drag entity models to ERD model

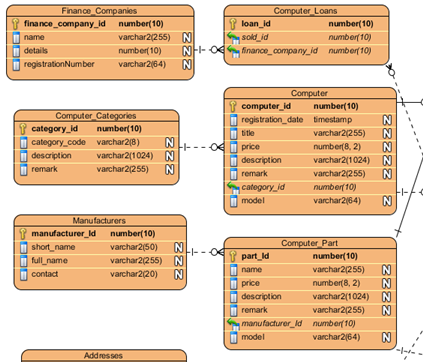

  12. ERD is formed with the entities.
    Add reversed entities to ERD
