BPMN Tutorial: Writing Working Procedures

Business Process Diagram is a very good tool to model the workflow for your company or department because it gives a clear picture about who is responsible for a particular task as well as the flow of the process. However, the Business Process Diagram does not tell us how a particular task should be performed. In Visual Paradigm, you can define working procedures for the tasks in your business process. This allows you to clearly document how a particular task should be performed. Furthermore, you can generate the working procedures into a document, so that all your team member can have a complete understanding on how to perform their work. In this tutorial, you will learn how to define working procedures for your business process and how to generate it into a working procedures report.

Compatible edition(s): Enterprise, Professional, Standard, Modeler

  • September 30, 2014
  • Views: 56,409
  • PDF

Define Working Procedures

To define working procedures for your business tasks:

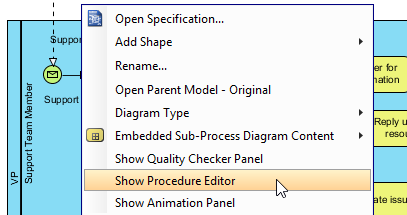

  1. Right-click on the blank area of your Business Process Diagram and select Show Procedure Editor.
    01 open procedure editor
  2. Select a task in your process diagram.
    Select task

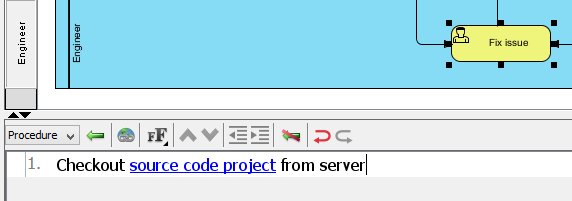

  3. Start entering the working procedures in Procedure Editor.
    Start editing

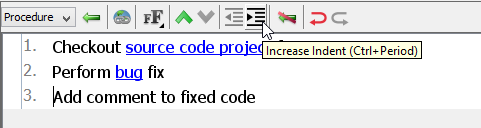

  4. You can make use of the Increase Indent button (or tab shortcut key) to create sub-steps for your working procedures.
    Change indent
  5. Once you finished entering the procedures, simply click on the blank area of the diagram to end editing or you can directly click on another task to define its procedures.

Create multiple procedures for a task

In some cases, a single procedure is insufficient to describe all possibilities for a task. In this case, you can define multiple procedures for it. To define multiple procedures for a task:

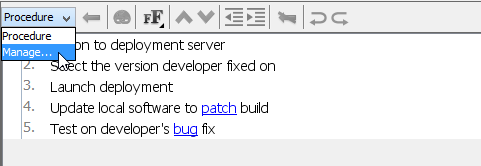

  1. Click on the combo box in the Procedure Editor and select Manage... to open the Procedures dialog.
    Manage procedures

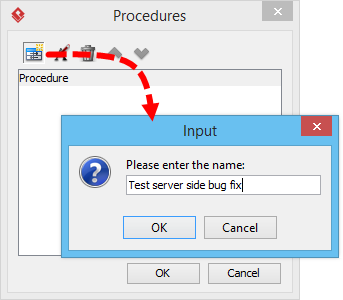

  2. Click the New Procedure button to create a new procedure and name the procedure as you desire.
    Create new procedures
  3. Once the new procedure is being created, you can then follow the steps above to fill in the details.
    Rename procedure

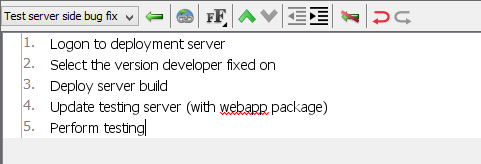

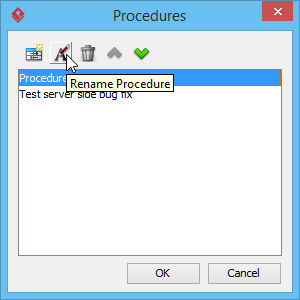

  4. You may also rename your existing procedures by clicking Rename Procedure.
    Rename procedure

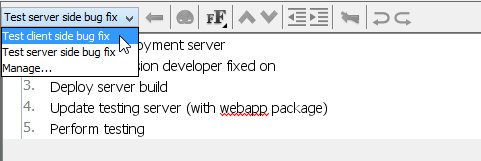

For tasks with multiple procedures defined, you can click on the combo box in the Procedure Editor to switch between the working procedures.

Switch procedures

Generate Working Procedure Document

The working procedures are not just defined in the tool, you can also output them as a document and distribute it to your team. To generate a working procedure document:

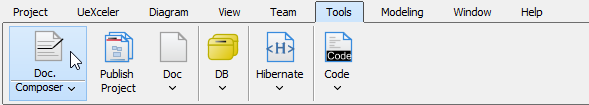

  1. Select Tools > Doc. Composer... from the application toolbar.
    Select 'Build from Scratch'

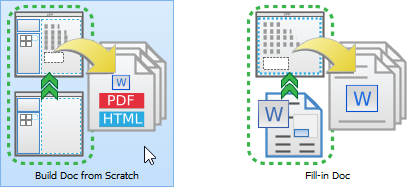

  2. Click on Build Doc from Scratch.
    Select 'Build from Scratch'

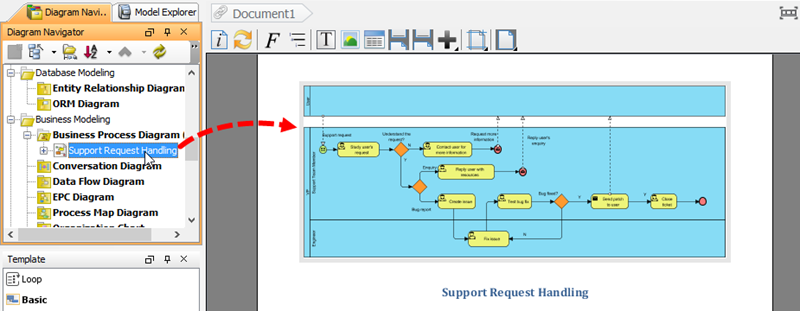

  3. Select your Business Process Diagram in the Diagram Navigator and then drag it onto the document editor. You should see the BPD appear in the document.
    Select diagram
  4. Expand the diagram node in Diagram Navigator to select the task or tasks that have working procedures defined.
    Select task

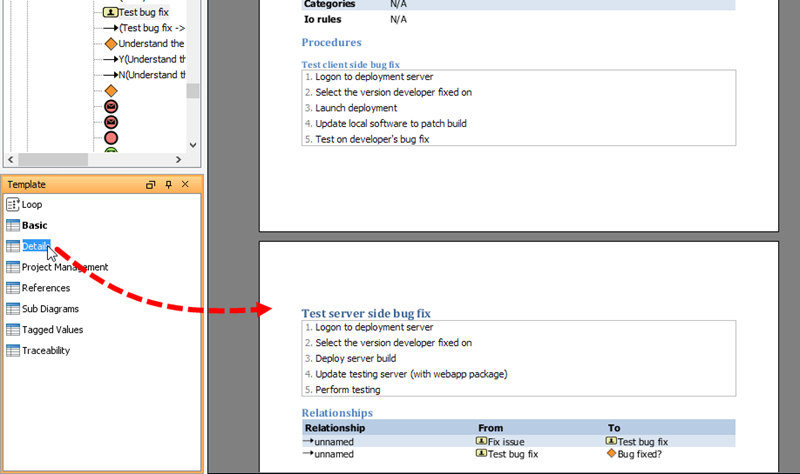

  5. Select the Details template and drag it onto the document editor, below the BPD. You should see the procedures of your tasks listed in the document.
    Drag content to document
  6. Click on the Export button at top right corner of Doc. Composer and pick the format you like to export. i.e. PDF Document this time.
    Export PDF document

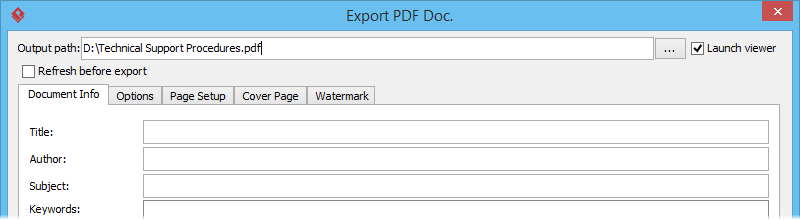

  7. Enter the location where you would like to output your working procedure document.
    Export PDF document window

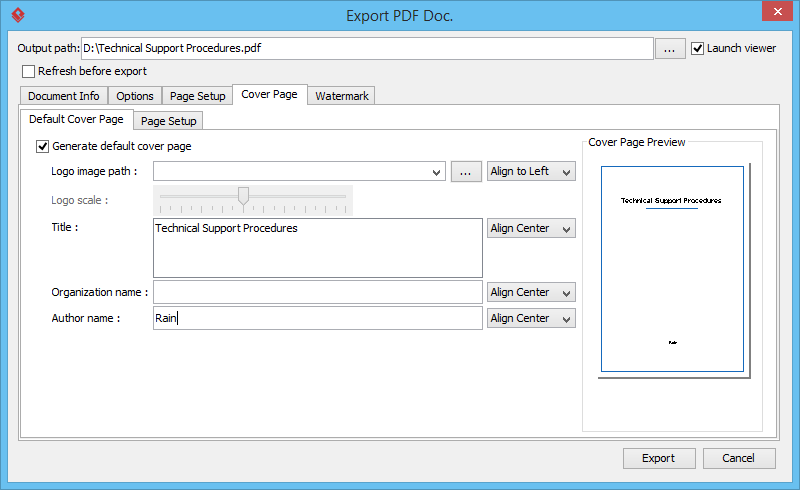

  8. Optionally enter the cover page details for your document.
    Cover page
  9. Click Export to generate a document once you have finished entering the details for the document. The working procedure document is now being generated to the location where you have specified. Then, you can distribute it to your teammates.

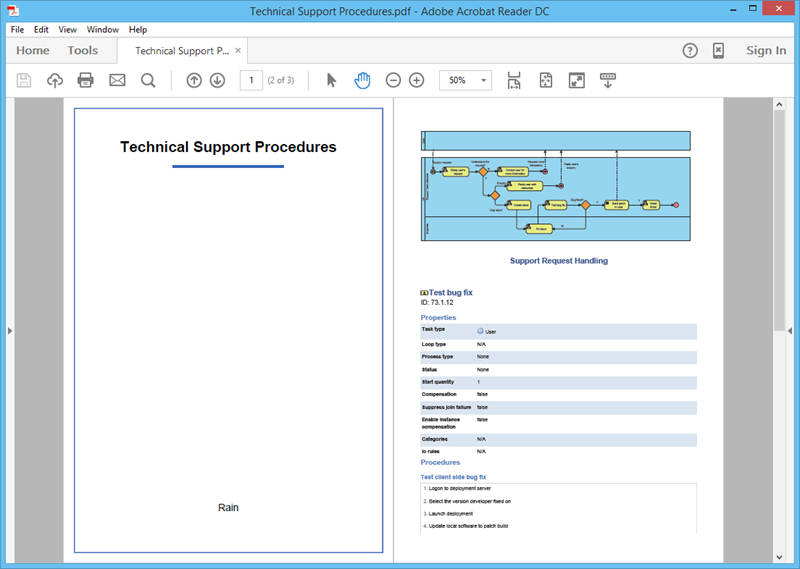

    Exported document
