Iterator Pattern Tutorial

This tutorial is aimed to guide the definition and application of Gang of Four (GoF) iterator design pattern. By reading this tutorial, you will know how to develop a model for the iterator pattern, and how to apply it in practice.

Compatible edition(s): Enterprise, Professional, Standard

  • October 16, 2009
  • Views: 27,483
  • PDF

Modeling Design Pattern with Class Diagram

  1. Create a new project Design Patterns.

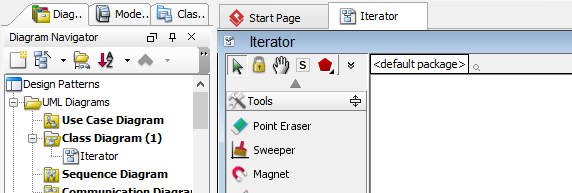

  2. Create a class diagram Iterator.
    new diagram

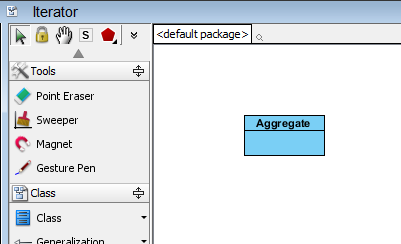

  3. Select Class from diagram toolbar. Click on the diagram to create a class. Name it as Aggregate.
    new aggregate class

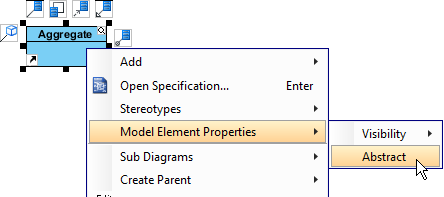

  4. Right-click on Aggregate, and select Model Element Properties > Abstract to set it as abstract.
    set class abstract

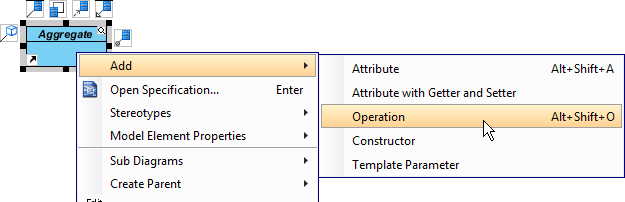

  5. Right-click on the Aggregate class, and select Add > Operation from the popup menu.
    add oper to aggregate
  6. Name the operation CreateIterator(), and make it return Iterator.
    name createiter

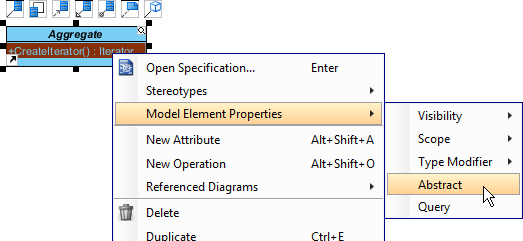

  7. Right-click on CreateIterator() : Iterator, and select Model Element Properties > Abstract to set it as abstract.
    set oper abstract
  8. Move the mouse cursor over the Aggregate class, and drag out Generalization > Class to create a subclass ConcreteAggregate.
    create concrete aggregate

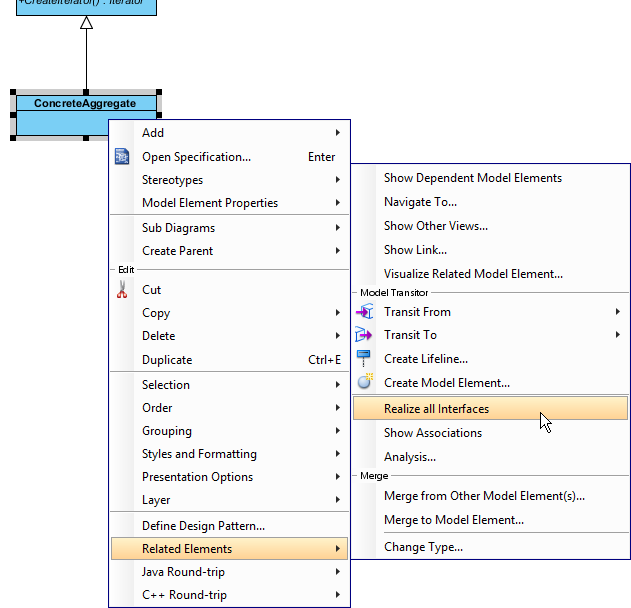

  9. ConcreteAggregate will inherit the operations from Aggregate. Select ConcreteAggregate, right-click on them and select Related Elements > Realize all Interfaces from the popup menu.
    realize concrete aggregate

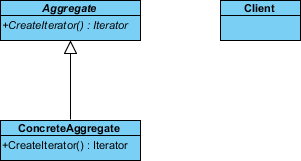

  10. Create a class Client near Aggregate.
    create client class

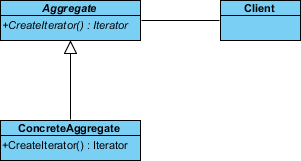

  11. Move the mouse cursor over the Client class, and drag out Association > Class to Aggregate.
    associate client aggregate

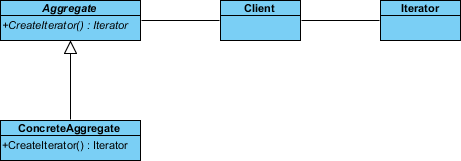

  12. Move the mouse cursor over the Client class, and drag out Association > Class to create an associated class Iterator.
    create iterator
  13. Right-click on Iterator, and select Model Element Properties > Abstract to set it as abstract.
  14. Right-click on the Iterator class, and select Add > Operation from the popup menu to add operations: First(), Next(), IsDone(), CurrentItem().
    create opers in ter

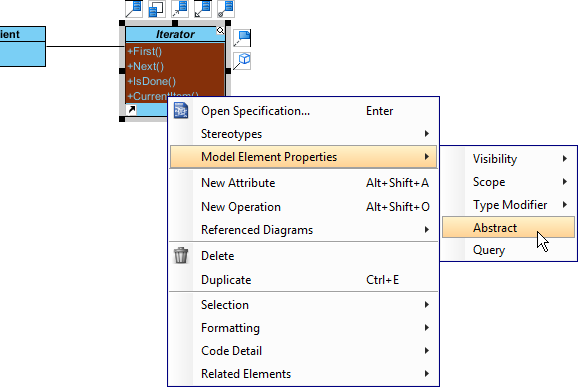

  15. Select all operations in Iterator. Right-click and select Model Element Properties > Abstract to set it as abstract.
    set opers abstract

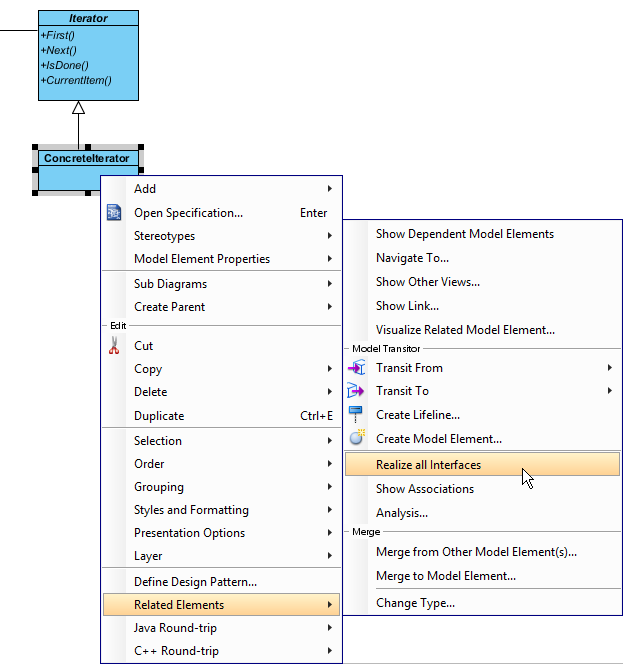

  16. ConcreteIterator will inherit the operations from Iterator. Select ConcreteIterator, right-click on them and select Related Elements > Realize all Interfaces from the popup menu.
    realize concrete

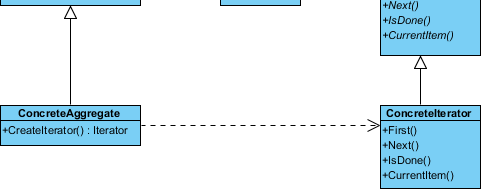

  17. Move the mouse cursor over the ConcreteAggregate class, and drag out Dependency > Class to class ConcreteIterator.
    add dependency
  18. Move the mouse cursor over the ConcreteIterator class, and drag out Association > Class to class ConcreteAggregate.

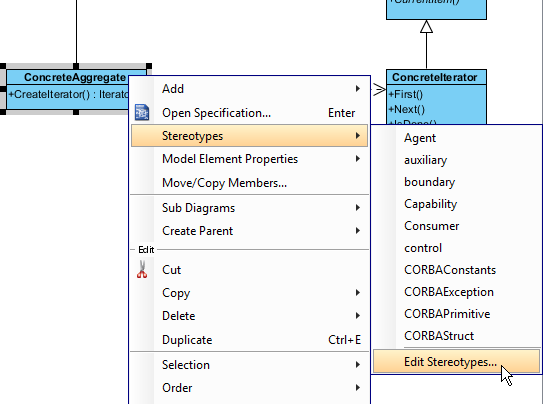

  19. In practice, there may be multiple ConcreteAggregate classes. To represent this, stereotype the ConcreteAggregate class as PTN Cloneable. Right-click on ConcreteAggregate class and select Stereotypes > Stereotypes... from the popup menu.
    stereotype concrete aggregate

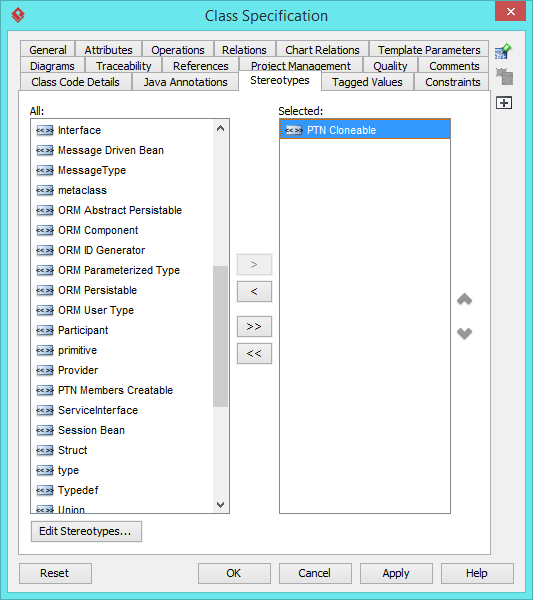

  20. In the Stereotypes tab of class specification, select PTN Cloneable and click > to assign it to the class. Click OK to confirm.
    select ptn cloneable

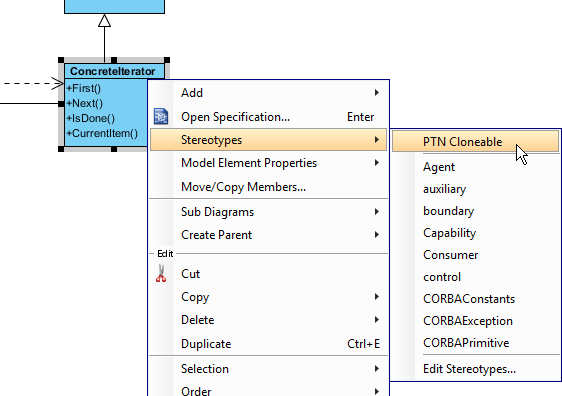

  21. There may be multiple ConcreteIterator classes. Right-click on ConcreteIterator class and select Stereotypes > PTN Cloneable from the popup menu.
    stereotype concrete iter

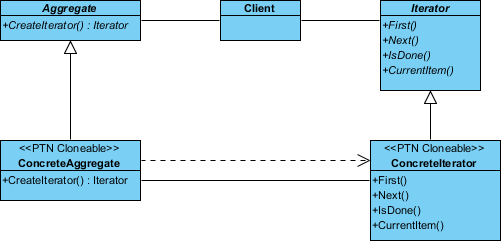

    The diagram become:
    pattern modeled

Defining Pattern

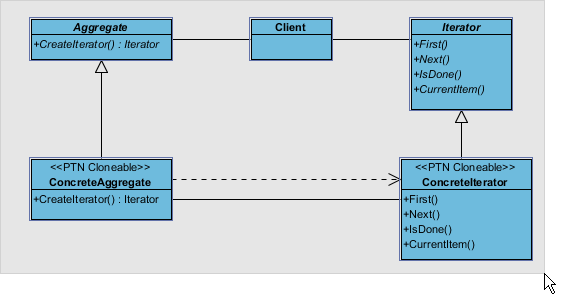

  1. Select all classes on the class diagram.
    select all classes

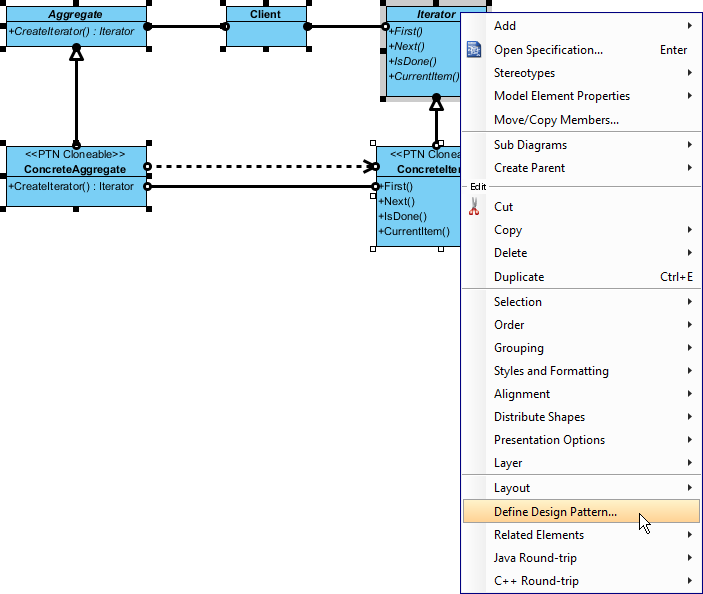

  2. Right-click on the selection and select Define Design Pattern... from the popup menu.
    define pattern

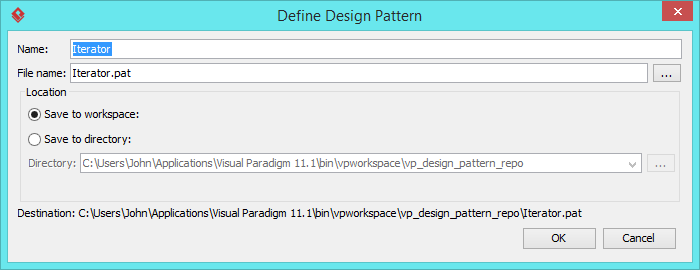

  3. In the Define Design Pattern dialog box, specify the pattern name Iterator. Keep the file name as is. Click OK to proceed.
    name pattern

Applying Design Pattern on Class Diagram

In this section, we are going to apply the iterator pattern to model the use of iterator in a diagram editor.

  1. Create a new project Diagram Editor.
  2. Create a class diagram Domain Model.
  3. Right-click on the class diagram and select Utilities > Apply Design Pattern... from the popup menu.
    apply design pattern

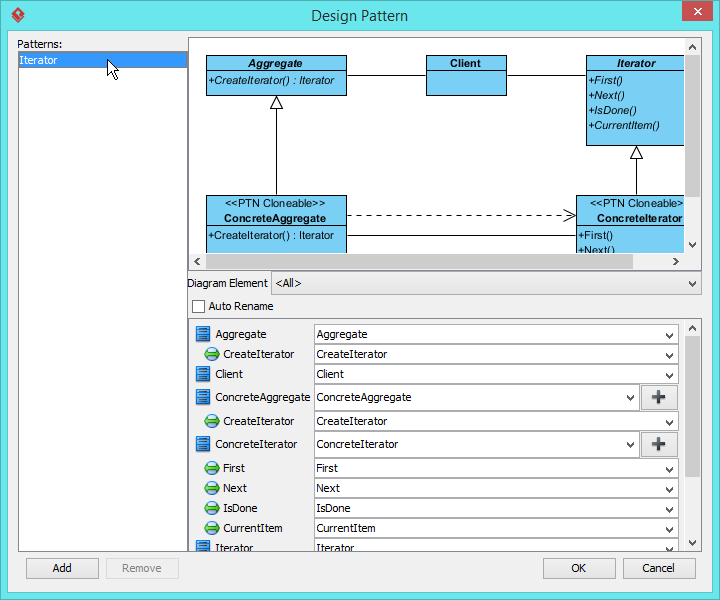

  4. In the Design Pattern dialog box, select Iterator from the list of patterns.
    select iterator

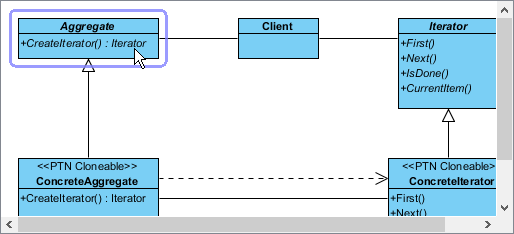

  5. Click on Aggregate in the overview.
    select aggregate
  6. Rename Aggregate to AbstractList at the bottom pane.
    rename aggregate

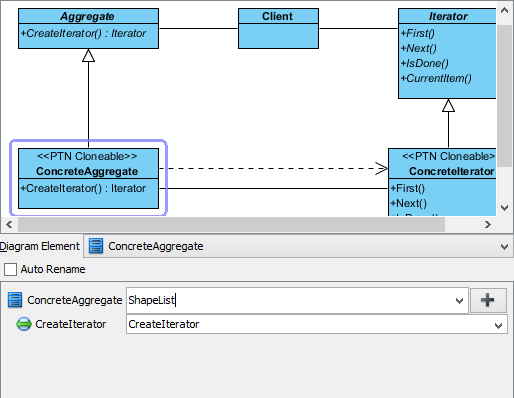

  7. Select ConcreteAggregate in overview, and rename it to ShapeList at the bottom pane.
    rename concrete aggregate

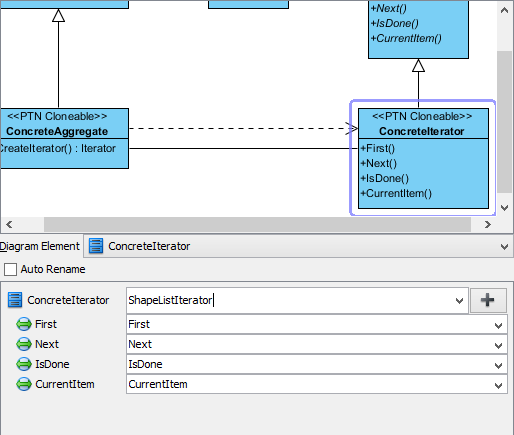

  8. Select ConcreteIterator in overview, and rename it to ShapeListIterator at the bottom pane.
    rename concrete iter
  9. Click OK to apply the pattern to diagram.

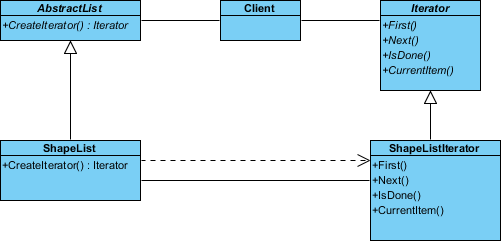

  10. Tidy up the diagram. Here is the result:
    result
